Glue Pulling systems

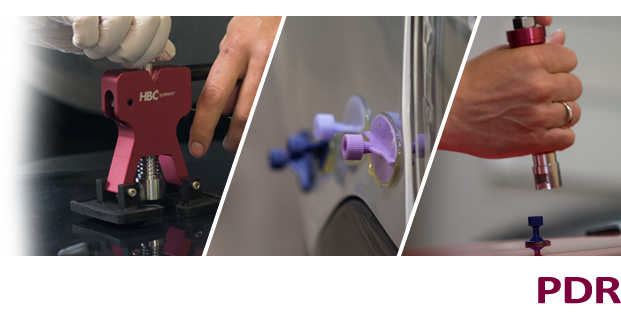

Glue pulling technique


Paintless dent removal is traditionally repaired when accessing the rear of the dented panels in order to success-
fully massage out the dent(s).


But not all dented panels are accessible from the rear.

  At times you will encounter ‘double skinned’ panels or even completely sealed sections, adding to the cars structural strength such as the cant/roof rail. For this type of repairs HBC system has developed a range of “Glue pulling” PDR systems and tools.

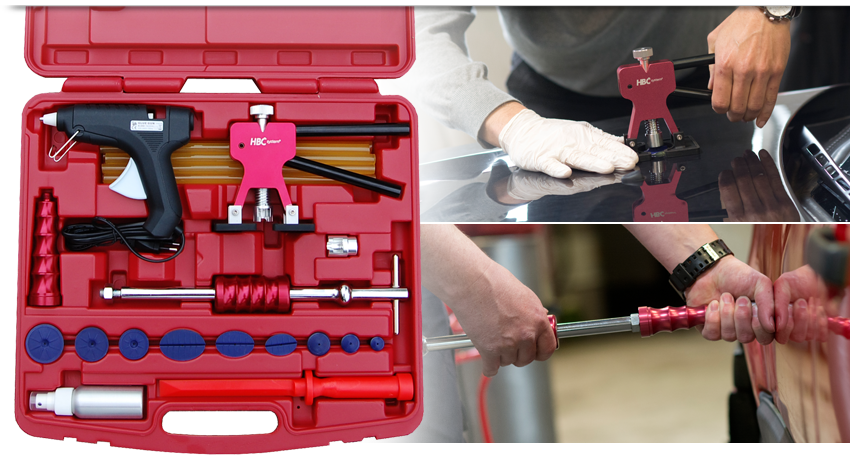

         Dent Repair Mini Kit   Part no. 17.400

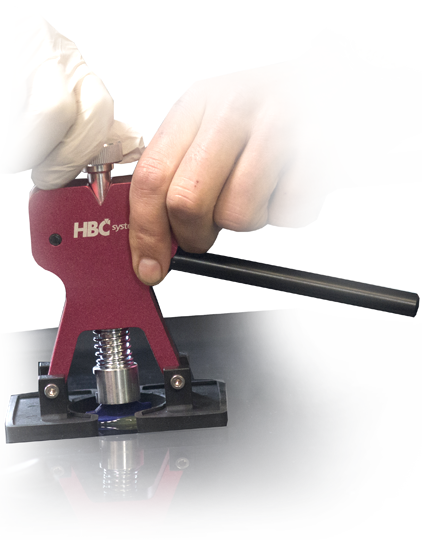

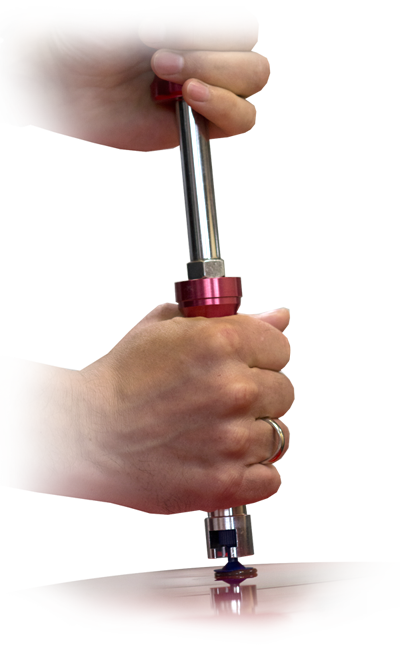

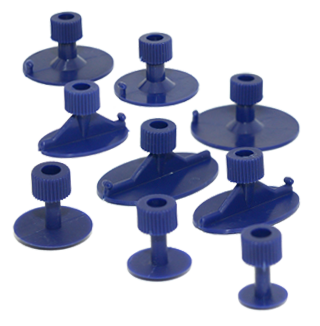

With the Glue pulling technique you basically repair the dent in question by attaching Dent tips to the affected area using our custom hot glues. The dent is then lifted/pulled using our  spring loaded lifting tools (slidehammer or our small dent lifter).



The centre of the dent has now been raised significantly and will require blending into shape by manipulating the panel back into its true form using a variety of hammer blending techniques. 20 min. later (having repeated this process several times), the dent has been successfully removed.

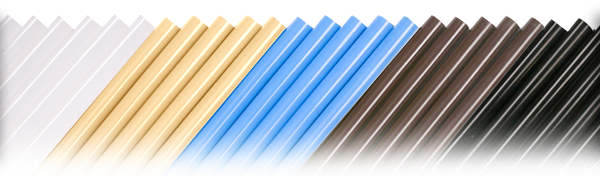

Glue sticks

CLEAR YELLOW BLUE BROWN BLACK

Quantity per bag

15 pcs. 15 pcs. 15 pcs. 15 pcs. 15 pcs.

Diameter mm

12 mm 12 mm 12 mm 12 mm 12 mm

Length cm

200 mm 200 mm 200 mm 200 mm 200 mm

Temp glue gun

195 C 195 C 195 C 195 C 195 C

Temperature range

10 - 25 C 10 - 25 C 10 - 25 C 10 - 30 C 20 - 40 C

Adhesion

Soft Medium Medium Strong Very Strong

Need Glue remover

No Yes No Yes Yes

Part no.

13983 13975 13976 13978 13979


Type of Repairs

Glue pulling is commonly used
on vehicles with rear wheel arch dents, roof rail damage caused
by large hail stones or from items being in proximity to the roof
(bicycle and luggage carriers)

Max. Size of Repairs

Ø 5 cm

Number of Repairs (avg.)

50-60

Time of Repairs (avg.)

15-20 min.
